Basic trigger can remember a circuit of binary information

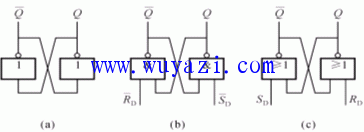

There are three fundamental circuits that can be used to implement memory in digital systems. These circuits form the basis of data storage and retrieval in electronic devices. The first one is the SR latch, which is a simple bistable circuit capable of storing one bit of information. It uses two cross-coupled NOR or NAND gates to maintain its state until it receives an input signal. The second type is the D flip-flop, which is widely used in sequential circuits. It captures the input data at a specific moment, usually on the rising or falling edge of a clock signal, making it ideal for synchronous operations. The third circuit is the JK flip-flop, which is more versatile than the D flip-flop as it can perform set, reset, toggle, and hold functions based on the inputs. These three circuits are essential building blocks in the design of memory elements such as registers and RAM modules. Understanding their operation is crucial for anyone studying digital electronics or computer architecture.
