What dog game do you play? Rage Flower Upgrade Host - Kyushu Captain Fengshen 240EX Water Cooler
Almost half of this summer's summer has passed, but the hottest period has not yet arrived. Heavy rain falls in the northern regions. The circle of friends is swept by the "seascape," while our southern region is still exposed to the sun. It takes five minutes to go out and sweat for half an hour. People just want to stay in the air-conditioned room quietly. The hot summer is not just us. The computer is equally uncomfortable. Many hosts have become “running tractors†running in the summer. They want to play games, but they do not want to hear the noise of the fans. It took a lot of money to upgrade the platform.
List of current accessories:
CPU: intel I7 4770K
Radiator: Kyushu Captain Fengshen Series 240EX (Tmall Edition)
Graphics: Asus Raptor GTX 980Ti
Motherboard: ASUS Z97-AUSB31
Memory: Zhiqi DDR3 2133 4Gx2
Hard Disk: 128GSSD+Seagate 2T
Chassis: first Makassardin
Power: TT SMART DPS G750W
Most of the accessories are in the past, this time also upgraded the graphics card, and changed the heat
Kyushu Fengshen's captain series not only has a good cooling effect, but also the value of Yan is loved by DIY players, of which the highest face value should be the white captain series, and the red and black captain EX series. An angel like a snow-white, like a seductive little devil, how to choose or see the color of his installed machine. However, the captain 240 EX is already the fifth captain, and its cooling effect has improved a lot compared to before.
At present, the price of the 240 EX Captain’s official store in Kyushu is 960 yuan.
Heat-dissipating water-cooled packaging is in place. Although the interior is not protected by high-density foam, such a carton can also provide good protection and no pollution.

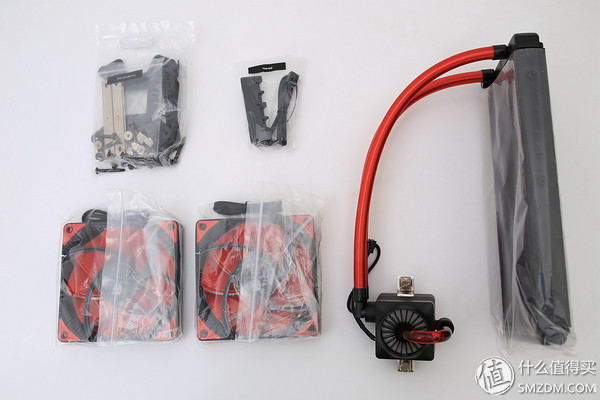

Captain 240EX all accessories: integrated water pump and 240mm cold row, two 12cm cooling fan, fan interface expander, and a kit that contains a variety of screws and thermal backplane.
Cold head integrated water pump, continuation of the design of the previous captain series, a small water tube exposed, black water pump does not look so good-looking white, but the red cold tube, it seems very comfortable.
Captain 240EX overall color, a large number of red with black, cold heads and fans are to take this color, said that the captain was released after the captain was black, but it is clearly the captain of the red
Two red TF 12cm cooling fans, 4pin power supply, support temperature control, more efficient and quieter than GF fan.
Accessories for different platforms, AMD and Intel's mainstream CPU can support (including intel 2011).
Extension cords are very practical things. Not all motherboards or chassis have so many fan-powered interfaces. However, this expansion cord allows interface 1 to be divided into four, and the chassis's alignment looks more tidy.
The backplane has only one piece, but there are multiple hole positions. Different platforms are suitable for installing screws in different holes.
These two screws are used to install the fan and cold row, the long is to fix the fan on the cold row, the short is to fix the cold row on the chassis.
After the cooling fan is installed, the overall effect
Cool cold head, with a red breathing light, as for the effect, behind the map.
Pure copper cooling base, comes with a layer of silica gel.
The rubber hose is surrounded by a layer of nylon mesh, which is very intensive. Not only is the rubber hose more durable, but it also matches the overall design of the captain 240EX. The face value is higher and the workmanship is very fine.
The appearance of the white captain and captain 240EX Tmall can be said to have different characteristics. The difference is not great. The biggest difference is the hose. The new captain's hose looks much higher than before.
ASUS Z97-A/USB 3.1, 8-phase power supply, material workmanship is very good. I feel that the performance improvement of the 6th generation I7 is not obvious, so I did not want to change the platform.
The water-cooled backplane is fixed on the back of the mainboard. Different platforms can be inserted into different holes.
Fix it from the front, use tool-free screws, and install it very easily.
Cold head installation, there are several directions to choose from, to see where they want to place the cooling fan, in the choice of the right angle, I am ready to put the fan in the positioning of the chassis to take this direction. As a result, after installing it on the mainframe, it was found in this direction. The hose was a little wrap around and it did not look good, so it changed direction again.

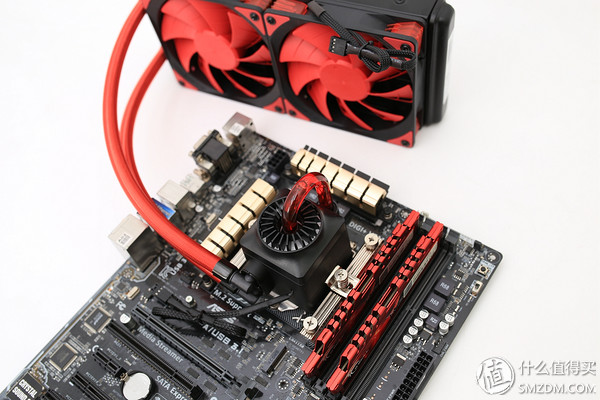

Both the main board and the water-cooling are already installed. The initial effect is the rest. The rest is to fix the cooling fan.
Open the top of Casattin and install the heat sink.
Casadine's design is still very good, and the installation process is very convenient.
Another big piece, the Asus Bird of Prey GTX980TI, the flagship of the previous generation, came out on the GTX10 line and started GTX980TI. It may be said by many people that you are not stupid, but only recently exploded AMD's 480 and NV's 1070. There have been more or less problems. Just as the graphics card of the previous generation reduced the price, the price gap is not much larger than that of the GTX 1070. As long as it is not a VR game, performance and 1070 should not be different.
ASUS Raptor series, 3 cooling fan design, support low-power low temperature stall technology, GTX980TI front is very pull, 6GB GDDR5 memory, the default frequency of 1216MHz, 384bit bit width, 2816 CUDA core.
The Asus Bird of Prey GTX980TI backplane covered all the PCB versions, while a few of the big fevers had done some hollowing out.
The power supply uses the 8+8pin power supply. Seeing this power supply interface has guaranteed performance, but the TDP power consumption is as high as 250W. This is a lot worse than the newly released GTX 1070. Suddenly it hurts my electricity bill.
ASUS Raptor GTX980TI Hawkeye fan, when the graphics card temperature is lower than 65 degrees, the fan stalls, with the CPU cooling captain 240EX, the feeling of time at a low power consumption are the same, there is no sound, the entire room can hear only me The mechanical keyboard sounded.
The interface uses 3DP+HDMI+DVI. It is estimated that the DVI interface will be eliminated too soon. The 4K era is coming.
The back of the graphics core
The third generation of pure copper directly touches the heat dissipation, and there are two heat pipes with a diameter of 10mm, which matches the heat dissipation of the three fans, and the heat dissipation efficiency is higher than that of the base and then the copper pipe.
ASUS Raptor 980TI and Captain 240EX and Chichi red memory are still a good match between the three, inexplicably formed a red triangle relationship, if the motherboard with a red is even better.
Here, the installation of the power supply is omitted, and the cable is always in the process of being called. It is also not easy to take pictures. The chassis uses a power supply solution and has a dedicated power supply compartment design. The overall appearance is more beautiful.
After a long battle, the machine was installed and the boot effect was satisfactory.
The 240EX captain's cold head uses a red LED breathing light, which is very good.
Two 12cm fans are also equipped with red LED lights, one turn, the effect as shown above.
ASUS's Raptor GTX 980Ti also has a red breathing light. The frequency of gracious breathing is inconsistent with the frequency of the captain's cold head. If it can be adjusted to a consistent, the effect is even better.
After covering the lid of the enclosure, Casadine's large area will not be exposed to light pollution.
Suddenly remembered that there is a red sister, put it into the effect should be good. For geeks like me, how can we see it without putting a hand in the mainframe?
Once again, the side cover is covered, life is repeated like this time and time again, and time is also slowly flowing away in such a repeated process.
List of configuration information read by Ada.
Aunt Lu's running situation, the machine scored 325,527, and the graphics card scored 232,975. Suddenly I found that my platform was still stuck with memory and hard disk.
Graphics performance, Asus Raptors GTX980TI ranked sixth, scored slightly higher than GTX1070.
Master Lu's score may not be credible, below is still running a professional 3D mark
The performance test directly ran away with the X file of the 3D MARK 2011, and the P file did not have any pressure to run. It did not really show the performance of the platform. The final X file score was 8114 points.
The new 3DMARK E score 7790 points
Run the new Ultra 3D MARK mode, which is the 4K file, can theoretically test the 4K gaming capabilities of the graphics card, score 4316,
Now that VR is so hot, if you have a VR file, you can directly check the VR capability of the video card. If you score low, you either miss out with VR or change to a new platform.
Finally ran two games, BF4 and Crysis 3, all under the full-spec 1080P resolution.
The number of frames in the BF4 game is more than 100 frames. It can be said that there is no stress when playing. According to this result, it can be inferred that even if the game is played at 4K resolution, it can still run smoothly.
The number of game frames for Crysis 3 is stable at around 65 frames. The island crisis is indeed a video killer. A few years ago, even the flagship of the previous generation was running more than 60 frames. If you want to play at 4K resolution, That GTX 980Ti is not enough.
In general, this upgrade solved the problem of heat dissipation in the mainframe, and the game performance has also been greatly improved. Although I have spent a lot of money, I think it is still worth it.
